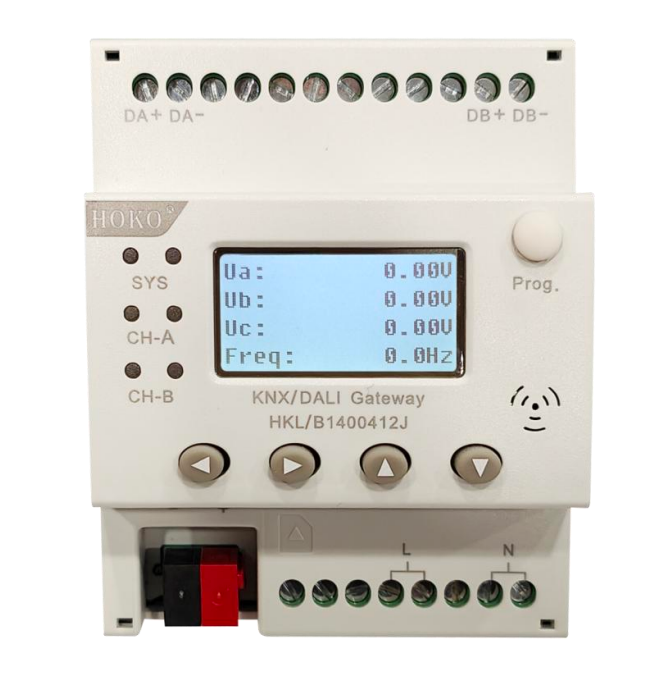

HKL/B1400412J Hi-BUS®KNX-DALI</br>gateway

HKL/B1400412J Hi-BUS®KNX-DALI
gateway

The KNX-DALI gateway (hereinafter referred to as the "DALI gateway") is designed with a total of 2 DALI power outputs. The maximum power consumption of each DALI driver for DALI communication is 2mA, and each DALI power output can connect up to 64 DALI drivers. The DALI gateway sends communication instructions through the DALI bus to adjust the output brightness value of the specified driver, achieving large-scale centralized control function.

Product Features
Brightness adjustment Multiple modes Fault self-test
  • Product Introduction
  • User Manual
  • Video


  • 001-KNX智能照明&智能家居-HKL-B1400412J KNX-DALI网关用户指南V1.0.0.pdf
