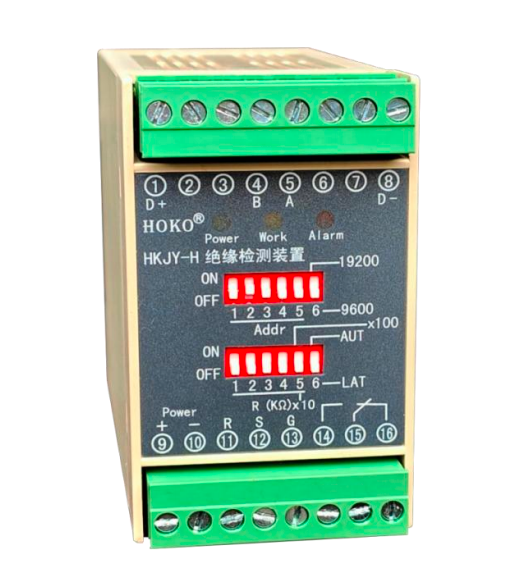

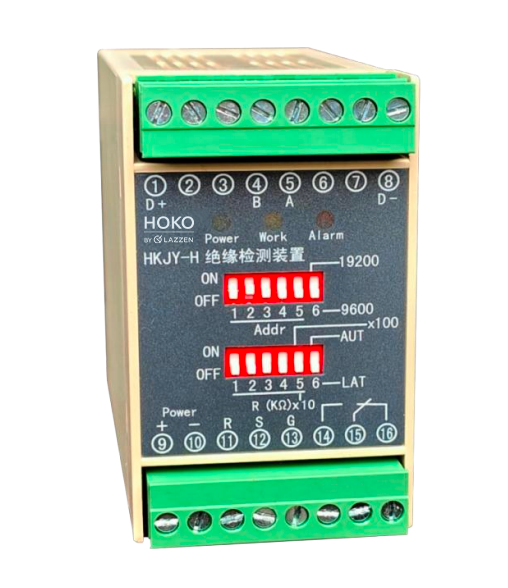

HKJY-H</br>DC insulation detection device

HKJY-H
DC insulation detection device

The HKJY series adopts the principle of unbalanced bridge to detect the insulation resistance of DC power supply to ground. It has RS485 communication and relay contact output, and has detection and protection functions. It can detect the insulation resistance value of the positive and negative poles of the DC floating ground system to ground, ranging from 0 Ω to 10M Ω; at the same time.

Product Features
Insulation Testing Detecting DC Voltage
  • Product Introduction
  • User Manual
  • Video


  • 007-HKJY-H DC Insulation Detecting Device User_s Manual v.1.1.pdf
