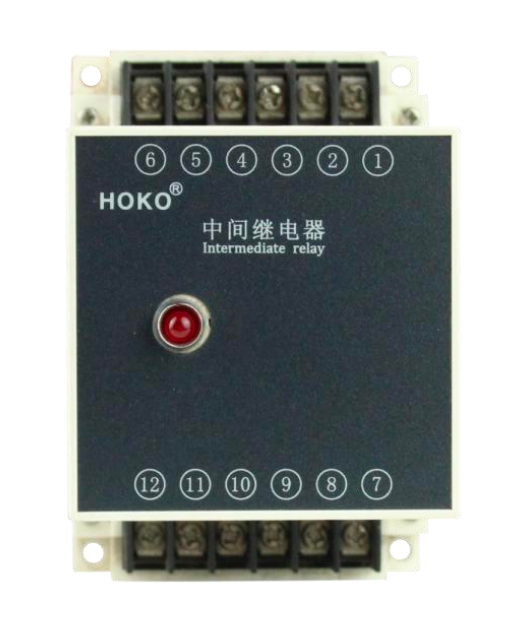

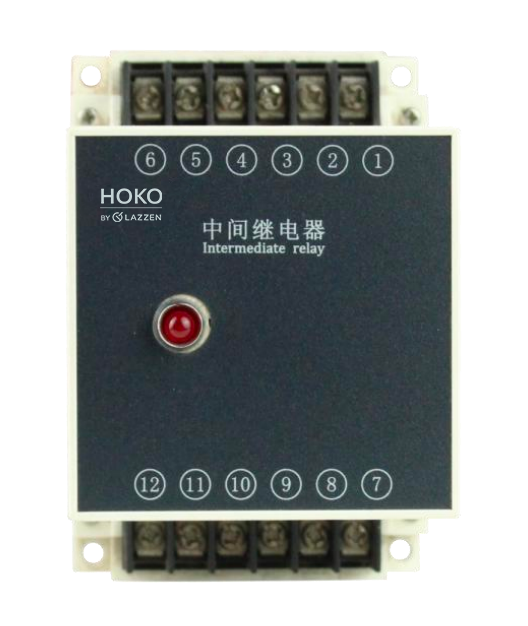

HJDZ-E202LD</br>DC dedicated high-power intermediate relay

HJDZ-E202LD
DC dedicated high-power intermediate relay

The intermediate relay in this series is an E-shell, directly installed on the switch cabinet guide rail, used for DC operation protection or automatic control circuits, to solve the problem of DC grounding at one point, or DC control cables that are long and tied together with AC cables causing induced voltage coupling, in order to increase the number of contacts. The same rated AC voltage connection is reliable and does not operate.

Product Features
Intermediate Relay Direct Installation Safe and Reliable
  • Product Introduction
  • User Manual
  • Video


  • 004-HJ系列静态继电器-HJDZ-E□□□LD 直流专用大功率中间继电器说明书V1.1.0.pdf
