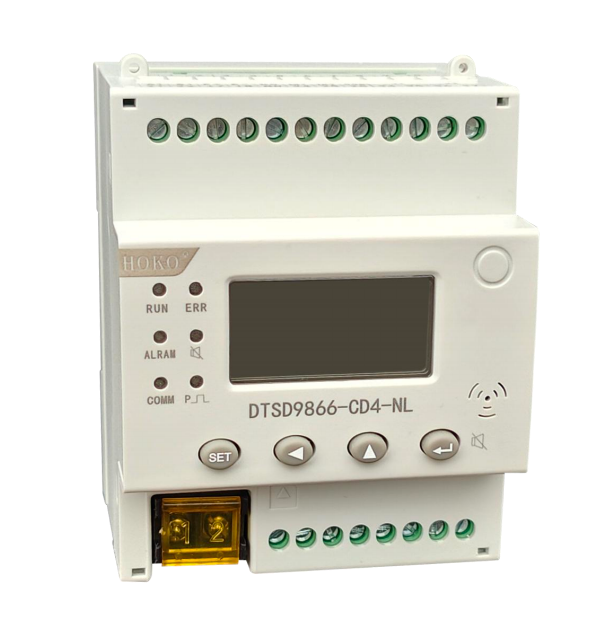

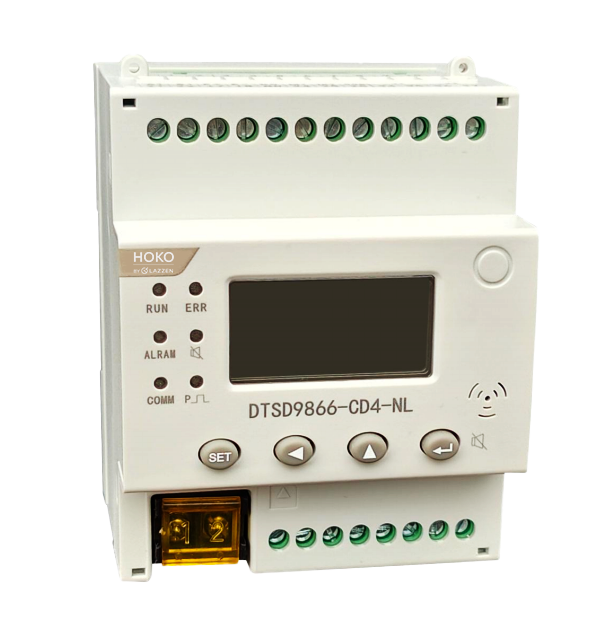

DTSD9866-CD4-NL</br>Rail type three-phase electric energy meter

DTSD9866-CD4-NL
Rail type three-phase electric energy meter

The DTSD9866-CD4-NL rail mounted three-phase anti backflow intelligent energy meter adopts rail installation, which is particularly suitable for applications with narrow installation spaces. The industrial standard wide temperature LCD display screen has good high and low temperature display characteristics, realizing full power measurement and display, including dynamic alarm, switch input and output status, SOE event recording, complex rate, harmonics, etc.

Product Features
Three phase multifunctional Anti backflow Supports multiple communication methods
  • Product Introduction
  • User Manual
  • Video

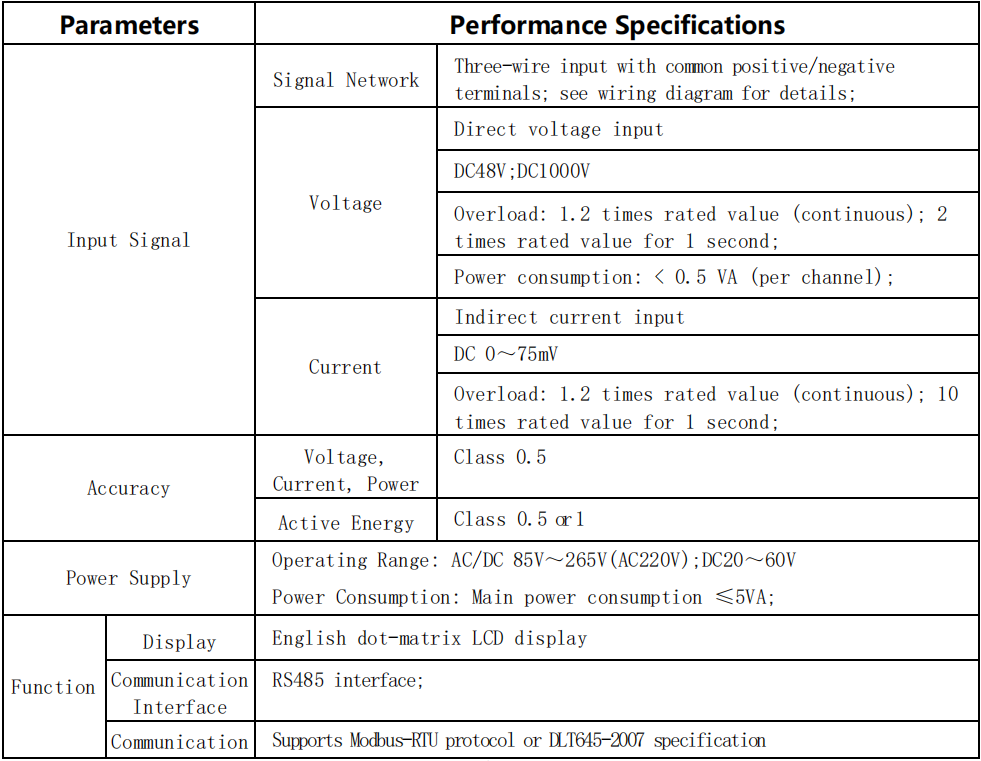

屏幕截图 2025-11-05 162702.png

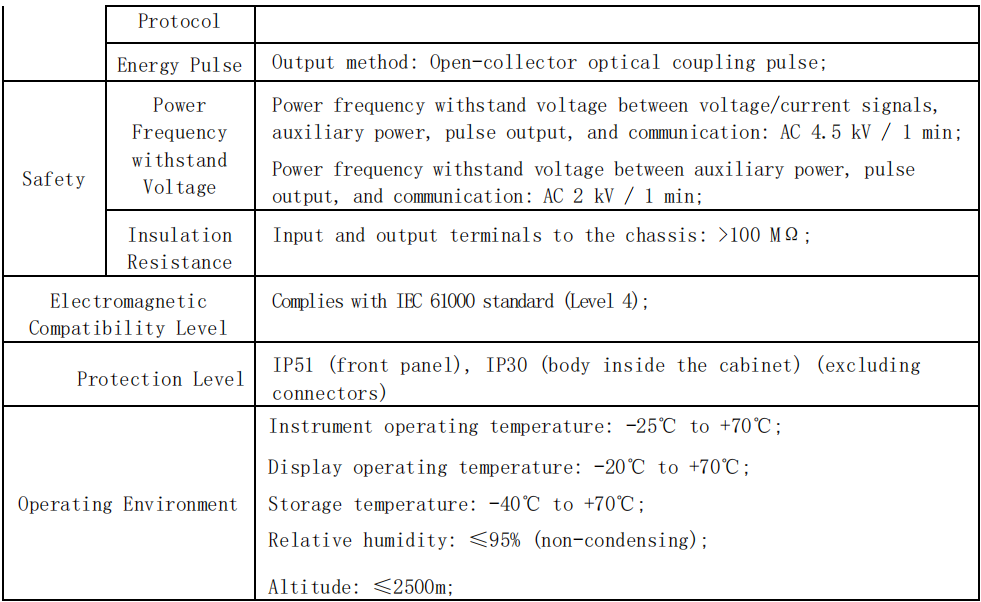

屏幕截图 2025-11-05 162738.png

  • 010-DTSD9866-CD4-NL Three-Phase Anti-Back Current Smart Power User Meter.pdf
